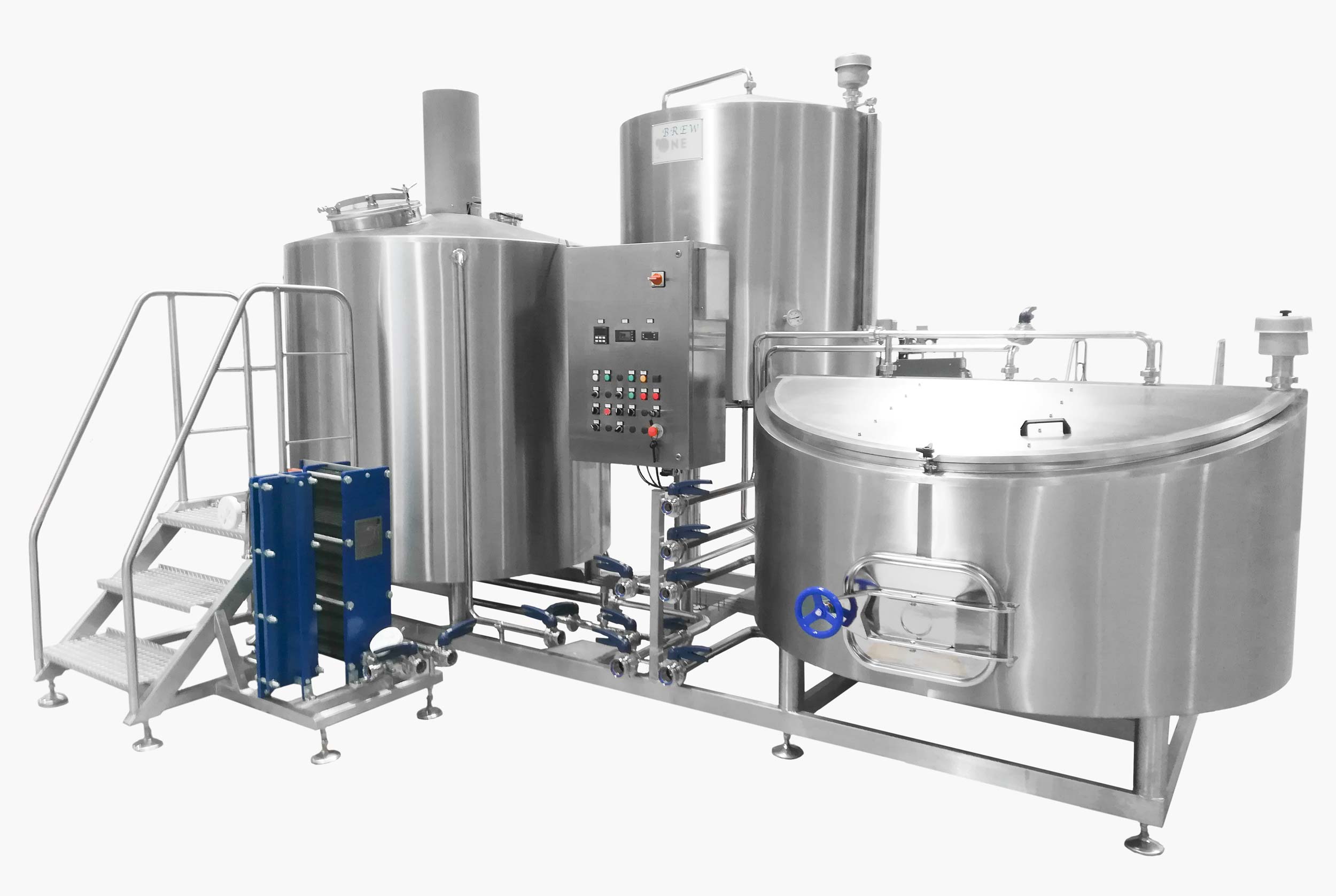

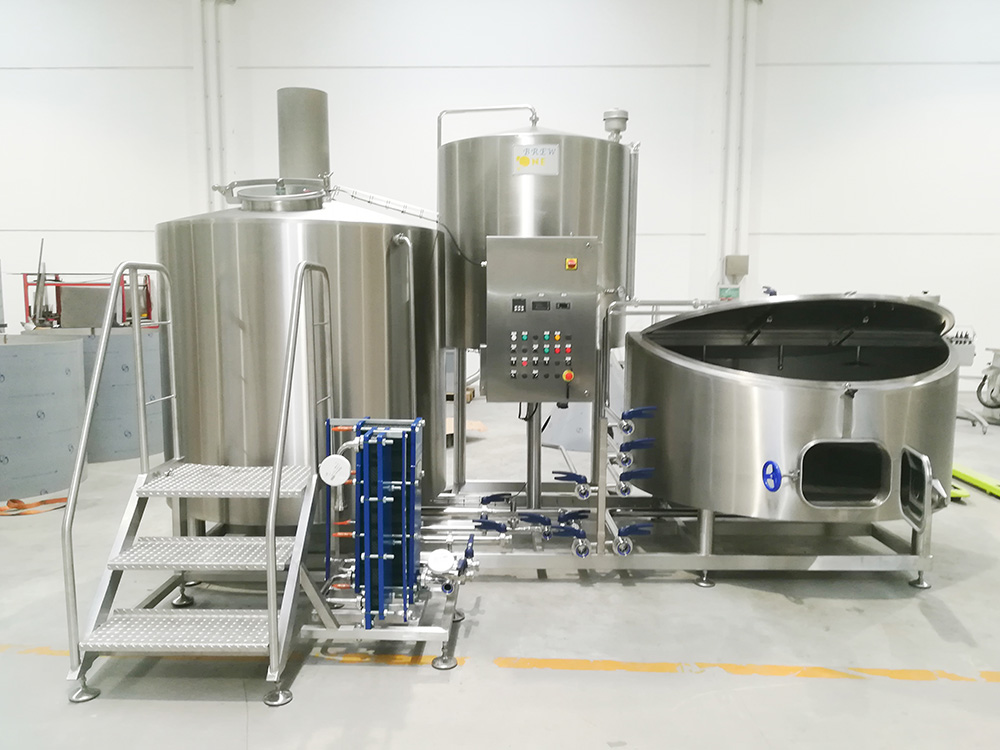

SEMI-AUTOMATIC BREWONE

N°1 MULIFUNCTIONAL TANK for the realization of the mash, boiling and whirlpool, with a total capacity of 1.6 times the capacity of the brew, with PADDLE DUPLEX, spray balls, loading door, steam jacket on the bottom, steam jacket on the cylindrical part, steam regulation valve, boiling steam outlet, cover, cylinder and base insulation, partial discharge, total discharge, temperature probe

N°1 LAUTER TUN for grist filtration, wide and low construction to have large filtering surface, with removable grids, washing balls, a door for unloading spent grain, Chinese hat for sparging water, mash inlet, filtered must outlet, total discharge

N°1 POMPA A VITE for the movement of the wort

N°1 CENTRIFUGAL PUMP for brewhouse cleaning

N° 1 VALVE GROUP for the sorting of fluids, butterfly type DIN 11851

N° 1 FIXED POLISHED PIPING GROUP for connecting the system components

N° 1 CONTROL PANEL with main switch, voltage warning lights, anomaly and function, electronic temperature controller and mash ramp management, screw pump control with FORWARD / BACK selector and potentiometer for speed control through INVERTER, pump control ON / OFF centrifuge, DUPLEX PADDLE command with MASH / WHIRLPOOL selector and electronic deceleration control system, hot water tank pump control (HLT) for sparging water with ON / OFF selector

N° 1 MODULAR  PREPARATION for the addition of a second MULTIFUNCTIONAL TANK able to double the production capacity

N° 1 BASE for MULTIFUNCTIONAL TANK

N° 1 BASE for LAUTER TUN

N° 1 PLATFORM with ladder for access to MULTIFUNCTIONAL TANK

3 hl

6 hl

12 hl

3+3 hl

6+6 hl

12+12 hl
